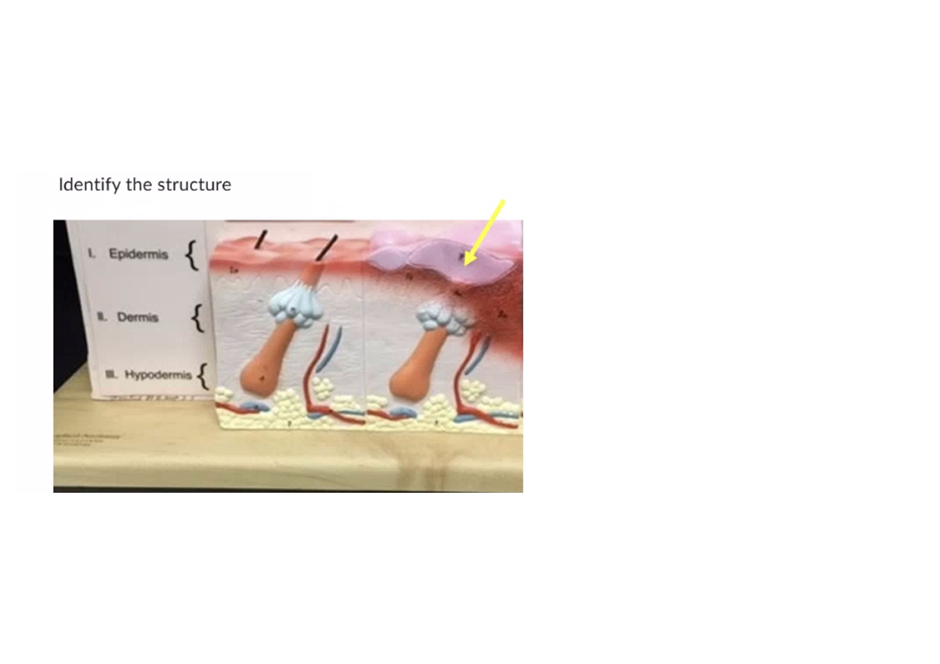

Stratum corneum: The stratum corneum is composed of dead, keratinized cells that form a tough, protective barrier. Its main function is to prevent water loss, protect against mechanical injury, and serve as the first line of defense against pathogens. Because it is the most superficial layer of the epidermis, it is the correct structure indicated by the arrow.

Female with Down syndrome (47,XX,+21): In this karyotype, chromosome 21 appears as a triplet (Trisomy 21), which is diagnostic of Down syndrome. The 23rd pair shows two X chromosomes, confirming the individual is female. Therefore, the correct interpretation is a female with Down syndrome.

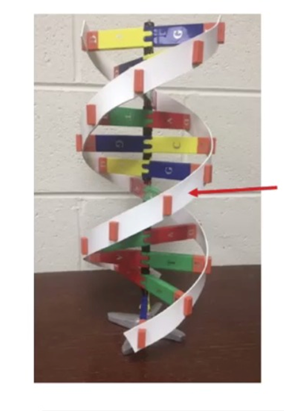

Base pairs (nitrogenous base pairs): The horizontal rungs of the DNA ladder represent base pairs, formed by hydrogen bonding between complementary nitrogenous bases: adenine (A) pairs with thymine (T), and cytosine (C) pairs with guanine (G). These base pairs are critical for encoding genetic information and ensuring accurate replication. The arrow is not pointing to the entire DNA molecule, but specifically to the structural unit that connects the two strands

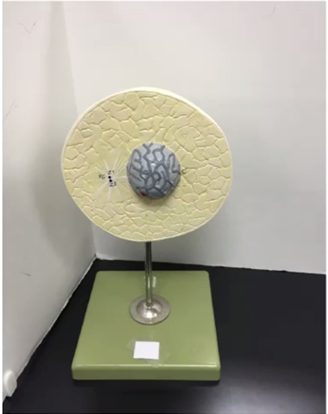

Interphase: During interphase, the cell is not actively dividing but is preparing for mitosis. The nuclear envelope remains intact, and the genetic material is visible as uncondensed chromatin rather than distinct chromosomes. This stage is crucial for DNA replication and cellular growth, ensuring the cell is ready for division. The presence of a clearly defined nucleus with diffuse chromatin confirms that the cell is in interphase

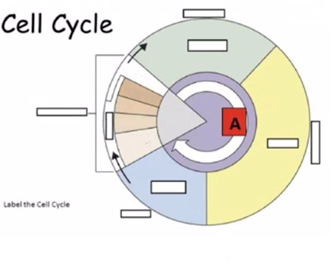

M phase (Mitosis): The cell undergoes nuclear division (prophase, metaphase, anaphase, telophase) followed by cytokinesis. The diagram highlights "A" in the central red segment, which typically represents mitosis in cell cycle charts. This is the stage where the cell actually divides, making it distinct from the preparatory phases.

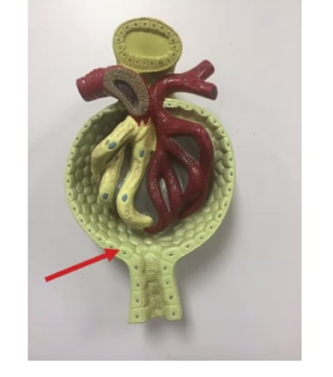

Simple cuboidal epithelium: The nephron tubules (such as the proximal and distal convoluted tubules, and parts of the collecting duct) are lined with simple cuboidal epithelial cells. These cells are specialized for secretion and reabsorption, which are essential functions in urine formation. Their cube-like shape allows for a balance between structural support and metabolic activity.

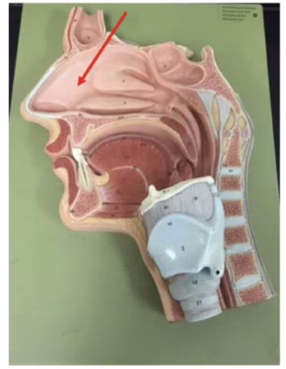

Pseudostratified ciliated columnar epithelium: This tissue lines most of the respiratory tract, including the nasal cavity. It appears stratified because nuclei are at different levels, but all cells touch the basement membrane. The cilia help move mucus and trapped particles out of the airway, while goblet cells secrete mucus to humidify and protect the respiratory passages. This specialized tissue is essential for filtering, warming, and moistening inhaled air.

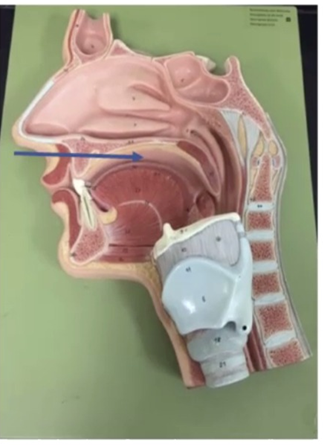

Pseudostratified ciliated columnar epithelium: This tissue lines the respiratory tract, including the nasal cavity. It appears stratified because the nuclei are at different levels, but all cells rest on the basement membrane. The cilia move mucus and trapped particles toward the pharynx, while goblet cells secrete mucus to humidify and protect the airway. This specialized tissue is essential for filtering, warming, and moistening inhaled air.

Chromatid: In this chromosome model, the pink structure represents the chromatid, and the red coiled section highlights a specific portion of the DNA molecule.

Nervous tissue: Nervous tissue is composed of neurons and supporting glial cells. Neurons have distinct cell bodies (soma) with branching dendrites and long axons for transmitting electrical impulses. In the slide, the darkly stained cell bodies and extending processes are characteristic of neurons. This tissue is specialized for communication, allowing rapid transmission of signals throughout the body.
